components and pins

if it's possible, have a look at the datasheet

buzzer piezo componente Arduino

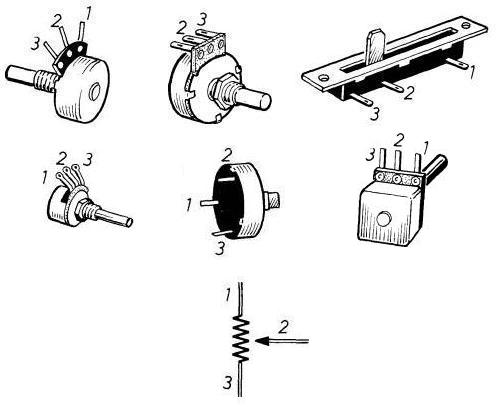

potenziometer componente Arduino

sensor Pir componente Arduino

matrix LED componente Arduino

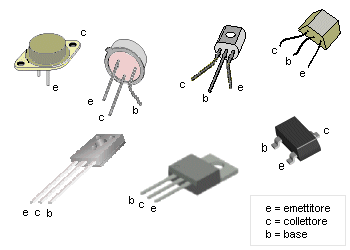

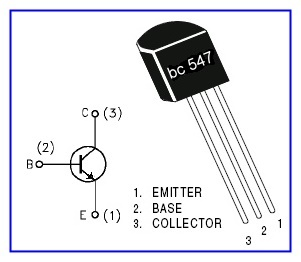

transistor

*looking the little ball, from left to right... yellow black red, GND, 5V, segnale
Arduino

longest pin is positive


Costruttore	5V	GND	signal
Futaba	red	black	white
Hitech	red	black	yellow
Graupner/Jr	red	Marrone	orange
Multiplex	red	black	yellow
Robbe	red	black	white

from: http://www.provalotu.com/robotica-2/gestiamo-i-servomotori-con-arduino/2/

Vcc -> 5v
GND -> GND
TRIG is trigger
ECHO is the receiver

to central pin the signal

led
anode	+	longest pin		resistor and then 5V
cathode	-	shortest pin	look into the led, there is a little square on cathode	GRD

led
type	voltage	mA	Ohm	resistor
red	1,8	15	213	220	Red	Red	Brown
yellow	1,9	15	206	220	Red	Red	Brown
green	2	15	200	220	Red	Red	Brown
orange	2	15	200	220	Red	Red	Brown
blue	3,5	15	100	100	Brown	Black	Brown
azure	3	15	133	150	Brown	Green	Brown
special
flash blue/bianco	3	15	133	150	Brown	Green	Brown
infrared	1,3	15	246	270	Red	Violet	Brown
ultraviolet	4	15	66	68	Azure	Gray	Black

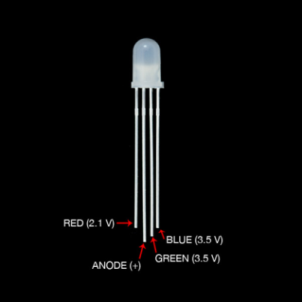

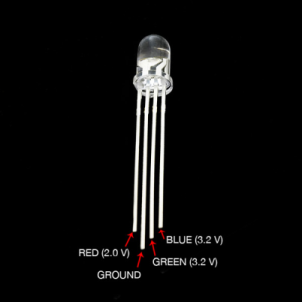

RGB
rgb red cat-com	2	15	200	220	Red	Red	Brown
rgb green cat-com	3,2	15	120	120	Brown	Red	Brown
rgb blue cat-com	3,1	15	126	120	Brown	Red	Brown
rgb red anode+com	2,1	15	193	220	Red	Red	Brown
rgb green anode+com	3,5	15	100	100	Brown	Black	Brown
rgb blue anode+com	3,5	15	100	100	Brown	Black	Brown
bicolor red anode+com	1,8	15	213	220	Red	Red	Brown
bicolor green anode+com	2,4	15	173	180	Brown	Gray	Brown
